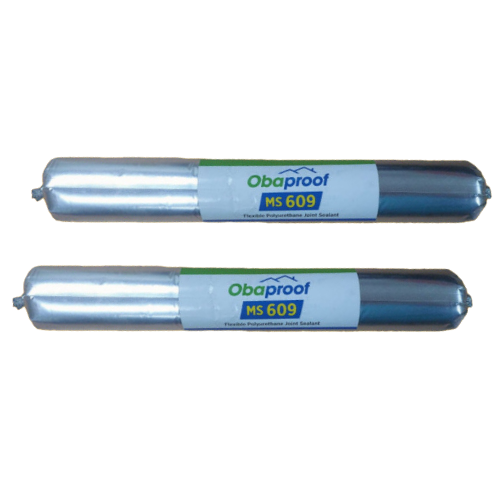

MS 609

Flexible Polyurethane Joint Sealant



Obaproof MS 609 is a low modulus, one component, flexible polyurethane joint sealant. When cured it will form a tough, flexible seal capable of cyclic expansion and compression movement. Obaproof MS 609 can be applied on external surfaces, exposable to UV and the normal weather condition. It is odourless and a non-sagging paste.



Packing:
600ML



Appearance:
Form: Paste form
Colour: White/Grey/Black

Description

Application Area

• Construction joint
• Metal roofing joint sealing
• Screeding
• Expansion joint
• Insitu concrete
• Aluminium panel
• Precast concrete
• Granite marble
• Brickwork

Application Tools

By sealant gun or by paste.

Pot Life / Shelf life

Shelf Life
9 months unopened.

Storage

Material to be stored in a cool and dry place.

Surface Preparation

Substrates must be clean, dry and free from grease. Remove all dirt, oil, grease, detergents and loose material.

Application

• Cut tip off cartridge. Cut nozzle to desired size at 45° angle. Screw nozzle onto cartridge. Insert cartridge into caulking gun.
• Push sealant ahead for uniform bead.
• Clean off excess sealant with M.E.K. or Toluene before dry.

Curing Time

Skinning Time: Obaproof MS 609 will skin forming in approximately 20 minutes.
Curing Time: Touch free: 6 – 8 hours
Fully cure: 7 Days
Curing time by thickness: 2mm/24 hours

Note

• Uncured sealant may cause skin, eye and respiratory system irritation.
• Use only in well-ventilated areas.
• Use appropriate personal protection to avoid contact with skin and eyes.
• In case of eye contact or irritation, flush your eye immediately with running water for 15 minutes and get medical attention.
• In case of skin contact, wash affected areas with hand cleaner followed by soap in running water. For further health and safety information, consult the current material safety data sheet.

Technical Data

• Application temperature: 6°C to 36°C
• Service Temperature: -20°C to 70°C
• Elongation at break ASTM D412: > 700%
• Tensile Strength ASTM D412: 1.3N/mm²
• Chemical resistant: Salt, Water, Alkaline, Diluted acids, Petroleum, Diesel
• Specific Gravity Based on ASTM D1475: 1.46 +/- 0.05
• Hardness (Shore A) Based on ASTM D2240: 26
• Body feeling Based on ASTM D217: 1.9cm
• Viscosity ratio (Brookfield Viscometer 2rpm/10rpm using spindle 7): 3.7
• Elongation at Break Based on ISO 8339: > 550%
• Tensile at Break Based on ISO 8339: 0.72 MPa
• Secant Modulus Based on ISO 8339 (at 23°C at 100% elongation): 0.33 MPa
• Lap Shear Strength (Al. to Al.) Based on ASTM C961: 0.84 MPa

Safety

• Applicators are recommended to wear gloves during application.
• Incase of contact, wash the affected area with water and soap.
• No food or beverages allowed during application.
• Keep the material away from children.
