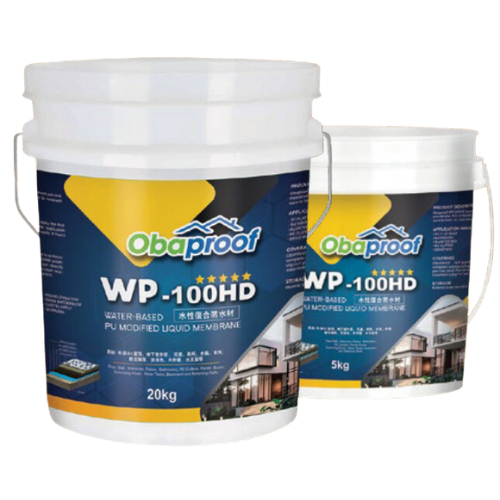

WP100HD

Subtitle:
Water-Based PU Bituminous Waterproofing Membrane



Packing:
5KG/20KG



Appearance:
Appearance in wet: Dark Coffee
Appearance when cured: Dark Black

Description

Application

“Structural Ponding Test (If Any): Before any waterproofing treatment, a minimum 24 hours of structure ponding test is strongly recommended. Fill up the water at least up to the construction joint in the vertical wall area, monitor and repair the leaking area by PU grouting injection, this simple step helps the performance of waterproofing for long term. Primer Coat: Mix 1 portion of Obaproof WP-100HD with 3 portions of water. Slowly mix with an electrical mixer, and apply a thin layer of primer approximately at 0.2kg/m² onto the surface. 1st Coat Of Obaproof WP-100HD: After the primer coat, the 1st layer of waterproofing coating can be applied after 1 to 2 hours (depending on the weather condition), even if the surface is still wet or damp (but not ponding). Stir it slowly with an electric mixer, maximum 10% of water is allowed to add in. After the stirring, it is ready to be applied by brush, broom, roller or spray with a high pressure single component spray machine at dosage of 0.75kg/m². 2nd Coat Of Obaproof WP-100HD: Before applying the 2nd coat, stirring the material is still needed. If there is a fibreglass net in the system, 1kg/m² could be consumed to ensure the fibreglass net had been fully covered by the 2nd coat of Obaproof WP-100HD. Do not apply more than 2kg/m/coat or the crack could be found at the surface of material and might cause peeling off after curing. Curing Time: Primer coat: 1-2 hours. 1st Coat: 6-8 hours. 2nd Coat: 8 hours till fully cured. Ponding Test: After curing, a min. 24 hours of water ponding tests are required.”
Application Area

• RC Flat Roof
• Bathroom
• Planter Box
• RC Gutter
• Drive Way
• Retaining Wall
• Lift Pit
• Bathroom
• Balcony
• Car Porch Roof

Application Tools

• Brush
• Roller
• Broom
• High Pressure Single Hose Spray Machine

Characteristic & Advantages

• Water-based
• Low VOC
• Applicable on damp surface
• Moisture Cure
• Good Bonding Strength
• High Elongation
• Good Waterproof
• Easy To apply
• Seamless

Features

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Surface Preparation

Clean the dusty surface, remove cement ash and trashed, ensure the surface is good to receive waterproofing.

Curing Time

Primer coat: 1-2 hours.
1st coat: 6-8 hours.
2nd coat: 8 hours till fully cured.

Coverage

Obaproof WP-100HD are recommended for complete waterproofing.
• Bathroom & Kithcen: 1kg/m² per coat
• Roof, planter boxes, balconies, water tanks and basement: 1.5kg/m² per coat

Note

• A protective screed is required after the completion of Obaproof WP-100HD.
• Avoid being flushed by rainwater for 2 ex-hours after usage.
• The Obaproof WP-100HD avoids being insolated directly under the sun for a long time. Suggest a glazed protection layer (exp: sand syrup) on the Obaproof WP-100HD.

Overcoating

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Mixing

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Dosage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical Data

• Solid content: 79%
• Elongation at break (ASTM D412): 1242.5%
• Crack bridging: 2mm
• Tensile strength (ASTM D412): 1.4Mpa
• Tear strength (ASTM D624): 8.7kgf/cm
• Hardness (ASTM D2240): 35-25
• Vapour transmission (ASTM E96): 0.49
• Coverage:
Wall: 0.5kg/m²/coat
Floor: 0.75kg/m²/coat
With fibre net: 0.85kg/m²/coat
Minimum in 2 coats application.
• Dry film thickness:
Wall: 0.8mm (1kg)
Floor: 1.1mm (1.5kg)
With fibre net: 1.4mm (1.7kg)
